Enhancements to ICMap
(Version 3.0 - Build 40)
- PNG and GIF transparent Images,
now supports both GIF and PNG images for indexes and database images
- GIF files are well supported for transparent
overlays, only supports 256 colors
- PNG supports 24 bit colors,
limited support for transparent overlays in versions prior to IE
7.0
- Google Maps and Microsoft Virtual
Earth Support, use these server as basemap information to overlay
ICMap layers
- Script Library - Utility
to View all java scripts and java script-templates used by ICMap
- Line Style Library,
provide complex line patterns
- repeating and non-repeating symbols
- multiple skip/draw patterns
- nested complex lines (top, middle, bottom line of other
line styles)
- pattern follows lines around corners
Click HERE for screen snapshot of Utility
- Polygon Pattern Library,
providing default patterns and creation of user defined bit map patterns.
Background Color and Pattern Color adjustments.
Click HERE for screen snapshot of Utility
- Polygon Gradient Library,
Create complex custom polygon gradient fills
Click HERE for screen snapshot of Utility

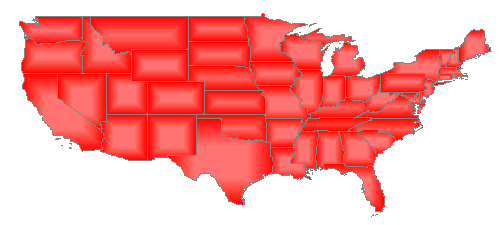

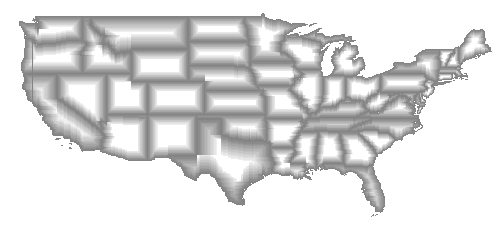

- Polygon Fill, follow Polygon outline to fill from the
line inward

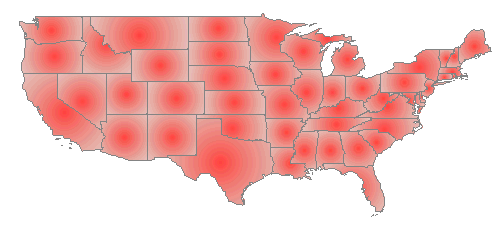

- Circle from Center (inward and outward)
- Box from Center (inward and outward)
- From Top, Bottom, Left, Right, Top-Left, Top-Right,
Bottom-Left, Bottom-Right
|
